Add JavaDoc Java snippet extractor and CI validation workflow#4655

Merged
liannacasper merged 18 commits intomasterfrom
codex/create-script-to-extract-java-markdown-snippets
Mar 30, 2026
Merged

Add JavaDoc Java snippet extractor and CI validation workflow#4655
liannacasper merged 18 commits intomasterfrom
codex/create-script-to-extract-java-markdown-snippets

Conversation

@liannacasper
Copy link
Copy Markdown
Collaborator

Motivation

  • Provide a reproducible way to extract Java fenced code blocks from JavaDoc comments for batch processing and later adaptation.
  • Emit enough location/context metadata so each snippet can be located and correlated with its source symbol without performing any transformation.
  • Validate snippets using the existing playground harness and keep CI work limited to changes that touch the snippet tooling.

Description

  • Add scripts/extract-javadoc-java-snippets.sh, a portable extractor that scans provided paths (defaults to CodenameOne/src), detects Java markdown fences inside /** */ and /// doc comments, and emits JSONL records of the form {"sourceFile":"...","symbol":"...","snippetIndex":n,"startLine":n,"endLine":n,"code":"..."}.
  • Implement --package-prefix filtering to restrict extraction by package name and support passing arbitrary file/dir targets as args.
  • Add .github/workflows/java-snippet-validation.yml, a path-gated workflow that only runs when the snippet tooling/workflow files change, uses a changed-file guard to ensure it only validates on script-only edits, extracts snippets, and validates each snippet by invoking scripts/java-snippet-to-playground-uri.sh.
  • Update scripts/java-snippet-to-playground-uri.sh to cache the compiled harness classes via a stamp file so repeated invocations (batch validation) avoid unnecessary recompilation.

Testing

  • Ran a syntax check with bash -n scripts/extract-javadoc-java-snippets.sh scripts/java-snippet-to-playground-uri.sh, which succeeded.
  • Extracted snippets with scripts/extract-javadoc-java-snippets.sh CodenameOne/src and produced 436 JSONL records, and with --package-prefix com.codename1.ui produced 209 records.
  • Performed spot checks by piping extracted snippets into scripts/java-snippet-to-playground-uri.sh; the extract/emit and harness-invocation plumbing worked, while many snippets produced EVAL_ERROR from the harness (these are snippet content evaluation failures that the workflow is intended to catch).
  • Verified the compile-cache stamp in scripts/java-snippet-to-playground-uri.sh prevents repeated full recompiles during batch validation runs.

Codex Task

@github-actions
Copy link
Copy Markdown

github-actions bot commented Mar 29, 2026

✅ Continuous Quality Report

Test & Coverage

Static Analysis

Generated automatically by the PR CI workflow.

@github-actions
Copy link
Copy Markdown

Cloudflare Preview

@shai-almog
Copy link
Copy Markdown
Collaborator

shai-almog commented Mar 29, 2026

Compared 32 screenshots: 32 matched.

Native Android coverage

  • 📊 Line coverage: 7.50% (3825/50994 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
    • Other counters: instruction 5.91% (18944/320576), branch 2.79% (868/31137), complexity 3.50% (1044/29790), method 6.19% (860/13890), class 10.31% (190/1842)
    • Lowest covered classes
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6327 lines covered)
      • kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.ClassReader – 0.00% (0/1519 lines covered)
      • kotlin.collections.kotlin.collections.CollectionsKt___CollectionsKt – 0.00% (0/1148 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.MethodWriter – 0.00% (0/923 lines covered)
      • kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/712 lines covered)
      • kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/623 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.Frame – 0.00% (0/564 lines covered)
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysJvmKt – 0.00% (0/495 lines covered)
      • kotlinx.coroutines.kotlinx.coroutines.JobSupport – 0.00% (0/423 lines covered)

✅ Native Android screenshot tests passed.

Native Android coverage

  • 📊 Line coverage: 7.50% (3825/50994 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
    • Other counters: instruction 5.91% (18944/320576), branch 2.79% (868/31137), complexity 3.50% (1044/29790), method 6.19% (860/13890), class 10.31% (190/1842)
    • Lowest covered classes
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6327 lines covered)
      • kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.ClassReader – 0.00% (0/1519 lines covered)
      • kotlin.collections.kotlin.collections.CollectionsKt___CollectionsKt – 0.00% (0/1148 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.MethodWriter – 0.00% (0/923 lines covered)
      • kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/712 lines covered)
      • kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/623 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.Frame – 0.00% (0/564 lines covered)
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysJvmKt – 0.00% (0/495 lines covered)
      • kotlinx.coroutines.kotlinx.coroutines.JobSupport – 0.00% (0/423 lines covered)

@shai-almog
Copy link
Copy Markdown
Collaborator

shai-almog commented Mar 29, 2026

iOS screenshot updates

Compared 32 screenshots: 31 matched, 1 updated.

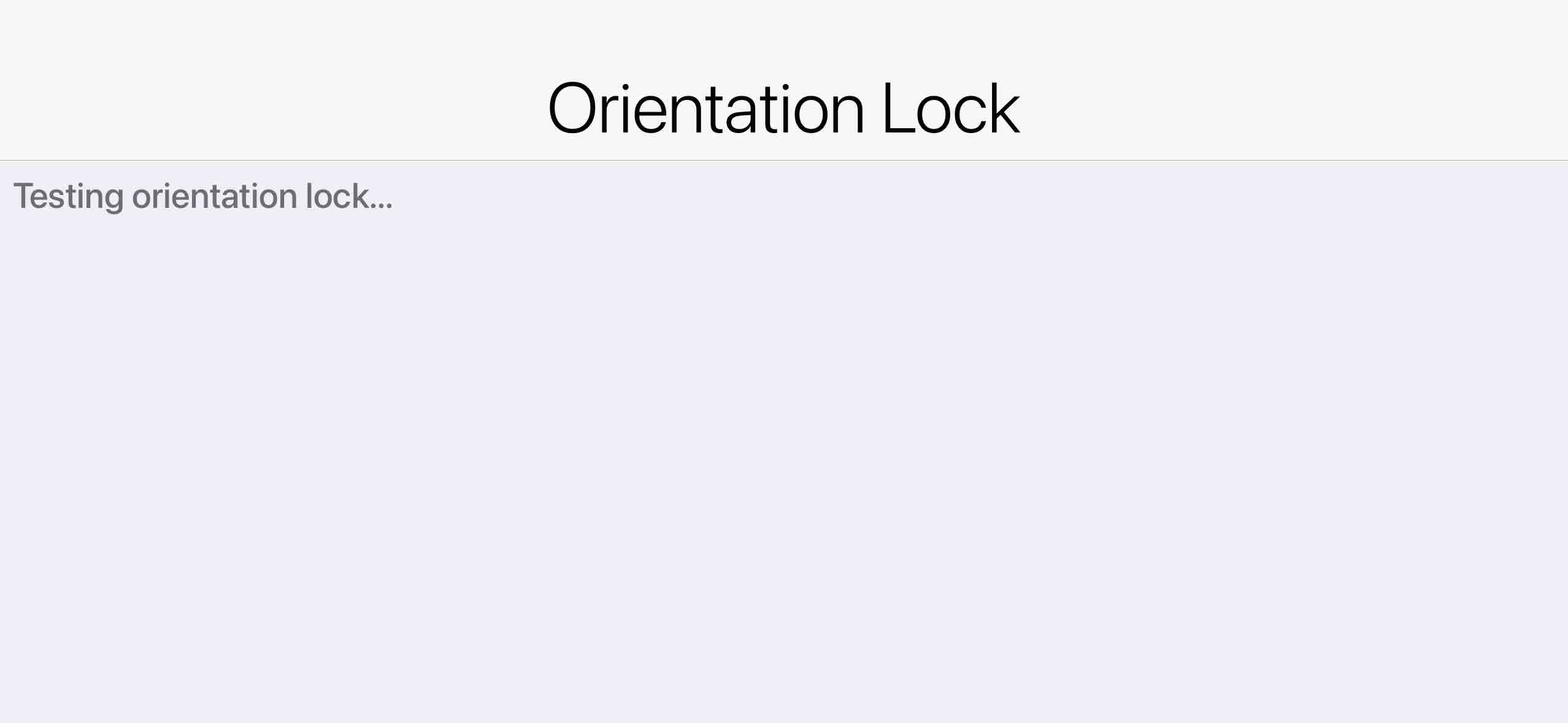

  • landscape — updated screenshot. Screenshot differs (2556x1179 px, bit depth 8).

    landscape
    Preview info: Preview provided by instrumentation.
    Full-resolution PNG saved as landscape.png in workflow artifacts.

Benchmark Results

  • VM Translation Time: 0 seconds
  • Compilation Time: 141 seconds

Detailed Performance Metrics

Metric Duration
Simulator Boot 77000 ms
Simulator Boot (Run) 1000 ms
App Install 14000 ms
App Launch 9000 ms
Test Execution 144000 ms

@liannacasper liannacasper merged commit 73d25e7 into master Mar 30, 2026
16 of 17 checks passed
